TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module

Name: TN Material GC9102 IC 177 Inch 128160 TFT LCD Screen Module
Brand: Qihang
Price: 1 USD

Wholesale TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module from china suppliers

Brand Name : Qihang

Model Number : JXL-1.77 TFT-M018C

Certification : ROHS/CE

Place of Origin : Shenzhen, China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal

Supply Ability : 100000 Per Month

Delivery Time : 20-5-25 Work Days

Packaging Details : Tray , Standard carton

Name : TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module

Resolution : 128*160

Display Size : 1.77 inch TFT-LCD

Material : TN

Dimensions : 34.0*43.7*2.25(mm)

Active Area : 28.03*35.04(mm)

Pixel Arrangement : RGB Vertical Stripes

Drive IC : GC9102

Viewing Angle : 6 o'clock / 12 o'clock

Warranty : 12months

Contact Now

TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module

Features

Main LCD 1.77 inch Amorphous-TFT-LCD (Thin Film Transistor Liquid Crystal Display) for mobile-phone or handy electrical equipments.

1.1 Construction: 1.77 inch a-Si color TFT-LCD with White LED Backlight.

1.2 Main LCD :

1.2.1 Amorphous-TFT1.77 inch display, transmissive, Normally white type, 12 o'clock.

1.2.2 128(RGB) X 160 dots Matrix

1.2.3 LCD IC controller is GC9102.

Quick Details

Name	TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module
Display Size	1.77 inch TFT LCD
Display Mode	Normally White, Transmissive LCD
Viewing Direction	6 o'clock / 12 o'clock
Material	TFT
Touch screen type	Resistive
Operating Temp:	-20℃-70℃
Storage Temp:	-30℃-80℃
Material	TN
Input Signals	RGB

Technical Service

If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.

Certification

Qihang has a complete quality management system and passed the ISO9001:2015 quality system certification.The products conform to SGS,BV, RoHS, Reach and other certifications.

Sample Policy

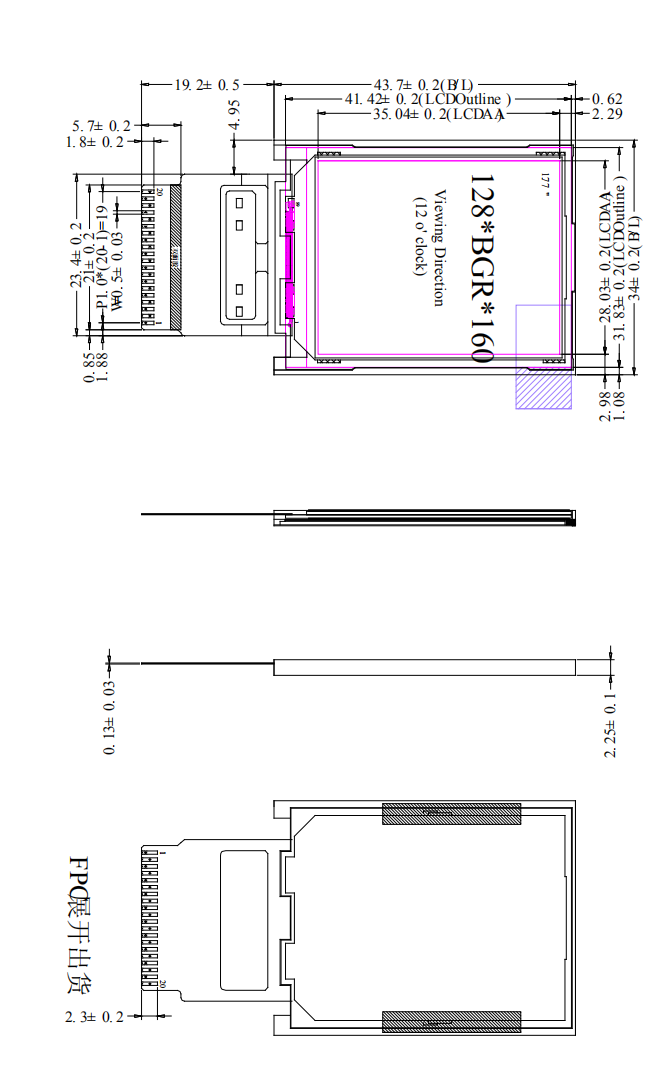

Product Drawing

TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module
