LCD (Liquid Crystal Display) is a type of flat panel display which uses liquid crystals in its primary form of operation. LEDs have a large and varying set of use cases for consumers and businesses, as they can be commonly found in smartphones, televisions, computer monitors and instrument panels.
| Name: | FPC Connection Rectangle Dot Matrix LCD Display Panel IPS LCM Module |
| Accept customized: | Yes |

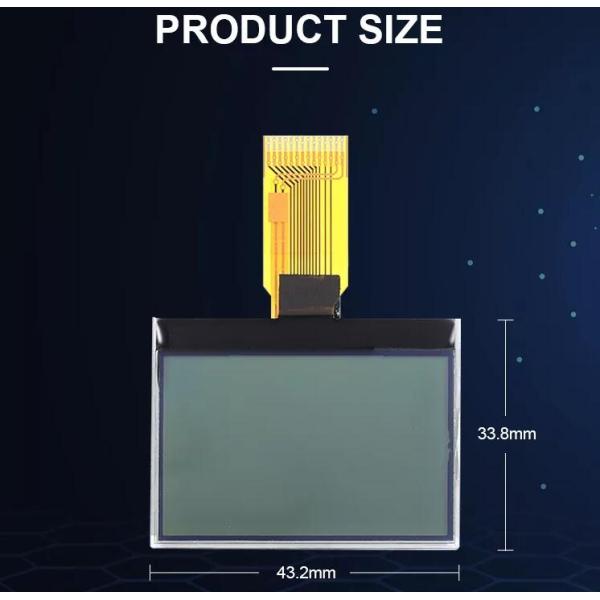

| LCM Size: | 43.5(L)*33.8(W)*4.2(H)mm |
| LCD Size: | 42.3*33.0mm |
| V.A Size: | 39.8*25.5mm |
| A.A Size: | 37.09*23.01mm |

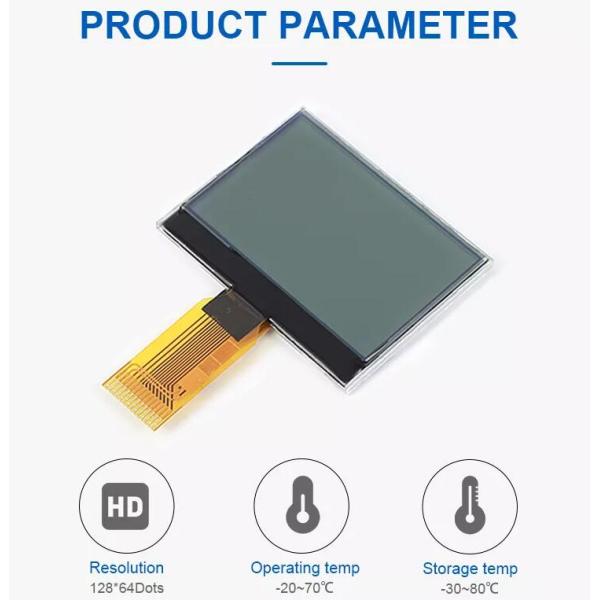

| Resolution: | 128*64Dots |
| Dot Size: | 0.33*0.26mm |
| Dot Gap: | 0.03mm |
| Driver IC: | UC1701X |
| Temp: | Operating temp.-20~70 and Storage temp.-30~80℃ |
| LCM operating voltage: | VDD=3.0V |
| FSTN COG Type: | 1/64duty,1/9bias,Vop=8.7V, 6 O'clock |
| Other: | White LED Backlight,3.0V |
| FPC connection |
For Other product Application:
Qihang Workshop:
Certification:
F A Q:
Q1:How long is the warranty?
A:The warranty period is one year.During the warranty period, in case of non-human injury, we will provide free repair or replacement, including delivery costs.Beyond warranty: we provide repair parts at a lower cost and provide services free of charge.
Q2:Do you accept customization?
A:Yes, we are glad to provide customized services.Our factory can design and produce the appearance, logo, material, color, size,installation method and so on according to customers' requirements.
Q3:What are your payment terms?
A:Sample 100% TT,batch order 30% deposit, 70% balance before delivery
Q4:How long is the delivery time?
A:For the finished products in stock, the delivery time is within 3-7 days;No inventory for 20-25 days;For customized samples and bulk orders, the lead time is 7-30 days.
Q5:How can I get a sample?
A:Since most of our products are high value products, there are no free samples.If you need to order a sample for inspection, we would like you to pay the sample fee and freight, and the sample will be sent to you upon receipt of payment.
